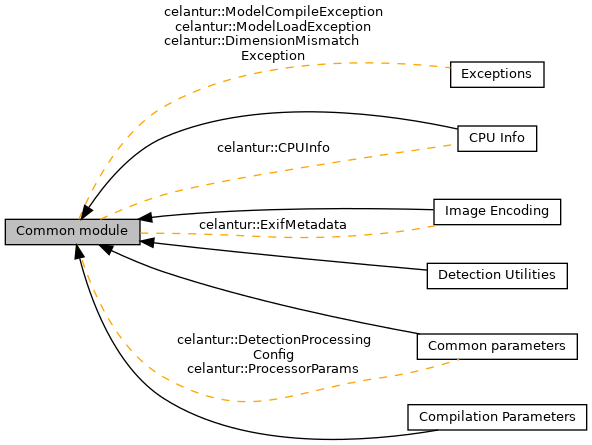

Collaboration diagram for Common module:

Modules
	Common parameters

	Compilation Parameters

	CPU Info

	Detection Utilities
	Utilities to work with celantur::CelanturDetection.

	Image Encoding
	Utilities for encoding and decoding images in JPEG formats, including handling EXIF metadata.

Classes
struct	celantur::CelanturDetection
	Structure to hold information about a detection made by the Celantur SDK. More...

class	celantur::ModelCompileException
	Exception class for errors during model compilation. This exception is thrown when there are issues encountered while compiling a machine learning model. More...

class	celantur::ModelLoadException
	Exception class for errors during model loading. This exception is thrown when there are issues encountered while loading a machine learning model. More...

class	celantur::DimensionMismatchException
	Exception class for dimension mismatches. This exception is thrown when there is a mismatch in expected dimensions, such as input size or tensor shapes. More...

struct	celantur::DetectionProcessingConfig
	Configuration that describes processing of a particular class This structure contains the type of blurring to be applied to detections of a specific class. More...

struct	celantur::ProcessorParams
	Structure to hold parameters for the image processor. This structure contains various settings for configuring the image processing. More...

struct	celantur::ImageMetadata
	Metadata associated with an image or frame. for now, just a placeholder. More...

struct	celantur::FrameMetadata
	Metadata associated with a video frame. for now, just a placeholder. More...

struct	celantur::MatContainer
	Container for an image and its associated metadata. for now, just a placeholder. More...

struct	celantur::ModelThresholds
	Structure to hold model threshold values for different object classes. This structure contains threshold values for detecting faces, license plates, persons, and vehicles. Class ids are identical to the celantur container. More...

struct	celantur::CPUInfo
	Structure to hold CPU information. More...

struct	celantur::Dims
	Structure to hold dimensions information. This structure contains the name, number of dimensions, dimension sizes, and whether it is an input dimension. More...

struct	celantur::ExifMetadata
	Structure to manage EXIF metadata for images. This structure encapsulates EXIF data and provides methods to manipulate and retrieve information from it. It is used in conjunction with JPEG encoding and decoding functions to preserve image metadata. More...

Typedefs
typedef std::map< std::string, std::any >	celantur::InferenceEnginePluginSettings
	The settings for the inference engine used during runtime. The settings are passed as a map of key-value pairs. More...

typedef std::map< std::string, std::any >	celantur::InferenceEnginePluginCompileSettings
	The settings for compiling the model for the inference engine. The settings are passed as a map of key-value pairs. More...

Enumerations
enum class	celantur::Rotation { celantur::None = 0 , celantur::Rotated90Clockwise = 1 , celantur::Rotated180 = 2 , celantur::Rotated90CounterClockwise = 3 }
	Enum to represent image rotation states. is used in celantur::FrameMetadata to describe the rotation of the frame. More...

enum class	celantur::LogSeverity { celantur::Error , celantur::Warning , celantur::Debug }
	Enumeration for different log severity levels. More...

Functions
const PerTypeProcessingConfig	celantur::DEFAULT_PER_TYPE_PROCESSING_CONFIG ({ {CelanturClassId::LicensePlate, DetectionProcessingConfig{ BlurType::BBox_Rectangle, 0.3f, 0.0f, 1.0f, true }}, {CelanturClassId::Person, {BlurType::None}}, {CelanturClassId::Face, { BlurType::BBox_Oval, 0.3f, 0.0f, 0.2f, true }}, {CelanturClassId::Vehicle, {BlurType::None}}, })
	Default per-type processing configuration. More...

std::ostream &	operator<< (std::ostream &os, const celantur::BlurType &blur_type)

std::istream &	operator>> (std::istream &os, celantur::BlurType &blur_type)

std::ostream &	operator<< (std::ostream &os, const celantur::CelanturClassId &id)

std::istream &	operator>> (std::istream &os, celantur::CelanturClassId &id)

std::istream &	operator>> (std::istream &in, celantur::OptimisationLevel &opt_level)

std::ostream &	operator<< (std::ostream &out, const celantur::OptimisationLevel &opt_level)

std::istream &	operator>> (std::istream &in, celantur::CompilePrecision &precision)

std::ostream &	operator<< (std::ostream &out, const celantur::CompilePrecision &precision)

std::istream &	operator>> (std::istream &in, celantur::MinOptMaxDims &dims)

std::ostream &	operator<< (std::ostream &out, const celantur::MinOptMaxDims &dims)

std::istream &	operator>> (std::istream &in, celantur::InferenceEnginePluginId &plugin_id)

std::ostream &	operator<< (std::ostream &out, const celantur::InferenceEnginePluginId &plugin_id)

std::istream &	operator>> (std::istream &in, celantur::LogSeverity &log_severity)

std::ostream &	operator<< (std::ostream &out, const celantur::LogSeverity &log_severity)

Detailed Description

Typedef Documentation

◆ InferenceEnginePluginCompileSettings

typedef std::map<std::string, std::any > celantur::InferenceEnginePluginCompileSettings

The settings for compiling the model for the inference engine. The settings are passed as a map of key-value pairs.

◆ InferenceEnginePluginSettings

typedef std::map<std::string, std::any > celantur::InferenceEnginePluginSettings

The settings for the inference engine used during runtime. The settings are passed as a map of key-value pairs.

Enumeration Type Documentation

◆ LogSeverity

enum celantur::LogSeverity

strong

Enumeration for different log severity levels.

used to set the logging verbosity of the inference engine (if available)

Enumerator
Error
Warning
Debug

◆ Rotation

enum celantur::Rotation

strong

Enum to represent image rotation states. is used in celantur::FrameMetadata to describe the rotation of the frame.

Note: Normally not needed by the end user.

Enumerator
None
Rotated90Clockwise
Rotated180
Rotated90CounterClockwise

Function Documentation

◆ DEFAULT_PER_TYPE_PROCESSING_CONFIG()

const PerTypeProcessingConfig celantur::DEFAULT_PER_TYPE_PROCESSING_CONFIG ( { {CelanturClassId::LicensePlate, DetectionProcessingConfig{ BlurType::BBox_Rectangle, 0.3f, 0.0f, 1.0f, true }}, {CelanturClassId::Person, {BlurType::None}}, {CelanturClassId::Face, { BlurType::BBox_Oval, 0.3f, 0.0f, 0.2f, true }}, {CelanturClassId::Vehicle, {BlurType::None}}, } )

Default per-type processing configuration.

References celantur::BBox_Oval, celantur::BBox_Rectangle, celantur::Face, celantur::LicensePlate, celantur::None, celantur::Person, and celantur::Vehicle.

◆ operator<<() [1/7]

std::ostream& operator<<	(	std::ostream &	os,
		const celantur::BlurType &	blur_type
	)

References celantur::BBox_Oval, celantur::BBox_Rectangle, celantur::None, and celantur::Segmentation.

◆ operator<<() [2/7]

std::ostream& operator<<	(	std::ostream &	os,
		const celantur::CelanturClassId &	id
	)

References celantur::Face, celantur::LicensePlate, celantur::Person, and celantur::Vehicle.

◆ operator<<() [3/7]

std::ostream& operator<<	(	std::ostream &	out,
		const celantur::CompilePrecision &	precision
	)

References celantur::FP16, celantur::FP32, and celantur::INT8.

◆ operator<<() [4/7]

std::ostream& operator<<	(	std::ostream &	out,
		const celantur::InferenceEnginePluginId &	plugin_id
	)

◆ operator<<() [5/7]

std::ostream& operator<<	(	std::ostream &	out,
		const celantur::LogSeverity &	log_severity
	)

References celantur::Debug, celantur::Error, and celantur::Warning.

◆ operator<<() [6/7]

std::ostream& operator<<	(	std::ostream &	out,
		const celantur::MinOptMaxDims &	dims
	)

◆ operator<<() [7/7]

std::ostream& operator<<	(	std::ostream &	out,
		const celantur::OptimisationLevel &	opt_level
	)

References celantur::Full, celantur::Low, and celantur::Medium.

◆ operator>>() [1/7]

std::istream& operator>>	(	std::istream &	in,
		celantur::CompilePrecision &	precision
	)
